Stock Number: GL2573

*IN-STOCK

PRICE: $78,000 + FET $8,640 = TOTAL $86,640

LEASE FOR AS LOW AS $1,560 PER MONTH FOR 72 MONTHS WITH A $1.00 BUYOUT – BASED ON APPROVED CREDIT

*FEDERAL EXCISE TAX ($8,640) IS NOT INCLUDED IN THE SALE PRICE FOR US BUYERS – INCLUDED IN LEASE PAYMENT

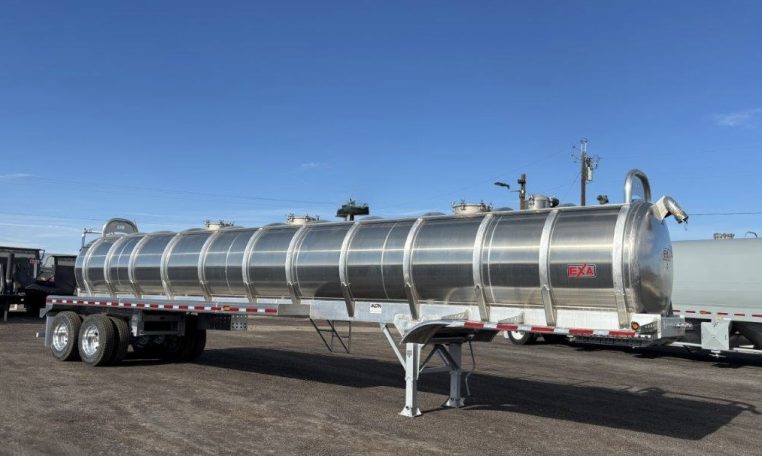

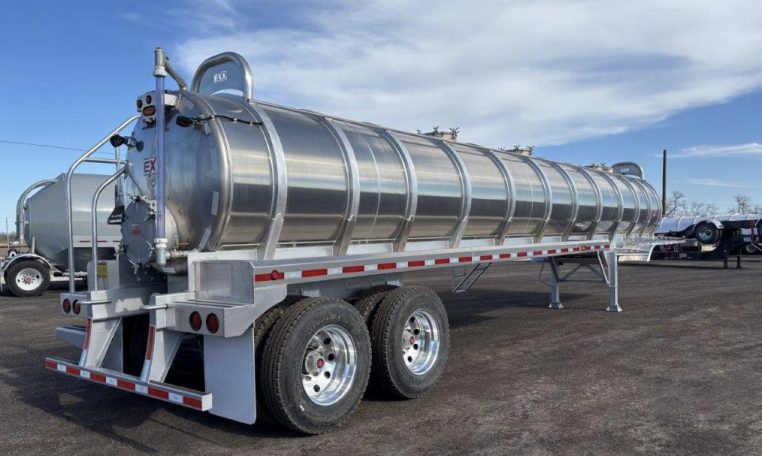

2026 EXA 165 BBL Aluminum Non-Code Vacuum Trailer

• Capacity: 165 Barrels / 6,930 Gallons + 1% Expansion
• Commodity: Transportation of Oilfield Fluids such as Water, Mud, and Oilfield Waste
• Pressure: Tested at 23 PSI
• Overall Length: 45 ft
• Height: 10 ft – 7 inches
• Weight: Approximately 10,840 lbs.
• Width: 102 inches
• Material: 1/4 inch Aluminum 5454H-32
• Suspension: Air Hendrickson HT300
• Baffles: Three (3) of 1/4 inch Thickness
• Bulkheads: 3/8 inch Aluminum 5454 H-O NON-CODE ASME Shape
• Compartments: Single Compartment
• Overturn Protection: Two (2), at the Front and the Back of the Tank
• Shell: 1/4 inch Aluminum 5454 H-32
• Stiffeners: Thirteen (13) External Aluminum 4-inch Rolled C-channels
• Welding: Inside and Out, Minimal Tie-ins with MIG Welding
• Connections: 3-inch Vacuum Connector with Aluminum Cam & Groove Fitting and Dust Plug
• Outlet: One (1) 6-inch Opening with Flange
• Shut Off: Ball Type Primary in Front Manway and Ball Type Secondary 12 Gallon on the Driver’s Side Front with Drain
• Venting/Reliefs: 1-1/2 inch Vacuum Relief, 2 inch Pressure Relief, both are located at the Top Front of the Barrel, 2 inch Blow Down Line at the Rear
• Axles: Two (2) 30,000 lbs. each, 120 inch wide, 77.5 inch track, 77.5 inch track TP Type with Automatic Slack Adjuster
• Brakes: 1/2 inch x 7 with Spring Parking, Auto Slack, ABS 4S/2M Bendix Anti-Lock Brake System
• Bumper: 4 inch x 3 inch Tube Per DOT Compliance
• Frame: 1/4 inch Steel Formed
• Landing Gear: 2-Speed Heavy-Duty 65,000 lbs Capacity
• Upper Coupler: Adjustable A572 3/8 inch Steel Plate with Holland King Pin
• Tires: Eight (8) 11 x 22.5 R All-Terrain Tires
• Wheels: All-Aluminum 10-Hole Hub Pilot Wheels
• Access Ladder: One (1) Safety Side Aluminum Ladder
• Walkway: Driver Side, with Handrails, Toe Kicks, Thru Tread Anti-Slip Walkway with Ladders in the Middle and the Back
• Manways: Three (3) Aluminum 20 inch Manways on Top of the T (Betts or Knappco). One (1) 20 inch Diameter on the Rear Bulkhead. One (1) on Top Front Used as a Shut-Off. All 20 inch Domed Style with Plates, Swing Bolts, and Wing Nuts
• External Coating: Jones-Blair Two (2) Coats of Polyurethane on an Epoxy Primer
• Internal Liner: Epoxy Liner
• Paint Prep: All Steel Surfaces Sandblasted Inside and Out
• External Coating: Hempel Two Coats of Polyurethane on an Epoxy Primer (4-6 mils DFT)
• Conspicuity Tape: 3M Tape per DOT Regulations
• Fenders: 25 ft Formed Hose Tray (10 Gallon) with 1/4 inch Supports on Both Sides, Aluminum Fenders in the Front
• Lights: Sealed Harness and Lights per DOT Regulations. Two Rear Work Lights with Integrated Switches
• Sight Glass: Sight Glass Liquid Level Indicator on the Rear Right Side of the Bulkhead
• Mud Flaps: Four (4) Anti-Sail Mud Flaps
• Tool Box: One (1) 30″ x 18″ x 18″ Tool Box on the Drivers Side
• Vacuum Manometer: One (1) Vacuum Manometer Located in the Rear
• Paint Color: Available in a Variety of Different Colors on Steel Parts
• Paint Color: Available in a Variety of Different Colors
• Under Tank (Optional): Additional Tool Boxes, Tire Carrier, Chain Carrier, Stainless Steel Frames
• Suspension (Optional): Hutch Spring Suspension
• Liquid Level Indicator (Optional): Ball Float Type with Pointer Level Indicators, Sye-Style Sight Glasses
• Available Option: Fruitland or NVE Rotary Vane Vacuum Pump
• *Certain Features Shown in Pictures Might Change Without Notice

Located in Texas. MANUFACTURERS WARRANTY. Financing and Leasing Available. Call (888) 432-9070 for Information. Delivery Available.
