2024 NEXA Carbon Steel (130 BBL / 5460-Gallon) Non-Code Vacuum Trailer - Vacuum Trucks and Heavy Trucks For Sale.

2024 NEXA Carbon Steel (130 BBL / 5460-Gallon) Non-Code Vacuum Trailer

$52,900.00 USD Dollars

FET $5,999 NOT INCLUDED
Click To Apply
IN-STOCK

Stock Number GL2448

EIGHT (8) VACUUM TRAILERS IN-STOCK

PRICE: $52,900 + FET $5,999 = TOTAL $58,999

LEASE FOR AS LOW AS $1,065 PER MONTH FOR 72-MONTHS WITH $1.00 BUYOUT – BASED ON APPROVED CREDIT

*FEDERAL EXCISE TAX ($5,999) IS NOT INCLUDED IN THE SALE PRICE FOR US BUYERS – INCLUDED IN LEASE PAYMENT

*FEDERAL EXCISE TAX NOT INCLUDED IN SALE PRICE FOR US BUYERS

2024 NEXA Carbon Steel (130 BBL / 5460-Gallon) Non-Code Vacuum Trailer

  • Capacity: 130 BBL / 5460-Gallon + 1% Expansion
  • Commodity: Transportation of Oilfield Fluids Such as Water, Mud, and Oilfield Waste
  • Design Pressure: 15 PSI, Tested at 23 PSI
  • Overall Length: 42′
  • Height: 10′ 5″
  • Weight: 17,350 lbs
  • Width: 102″
  • Material: A-36 Carbon Steel

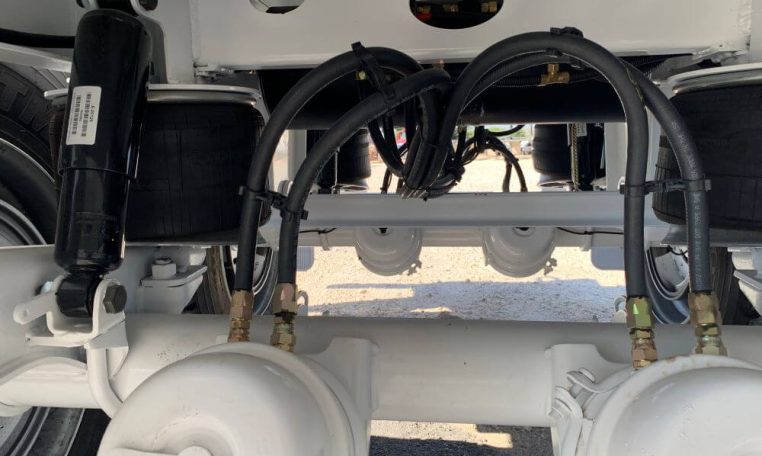

  • Suspension: Air Hendrickson HT300 60,000 lbs. Capacity
  • Baffles: Three (3) 1/4″ Thick Baffles
  • Bulkheads: 1/4″ Non-Code ASME Shape
  • Compartments: Single
  • Overturn Protection: Two (2) at the Front and Back of the Tank
  • Shell: 1/4″ A-36 Steel
  • Stiffeners: Twelve (12) Rolled 3″ C-Channel Profile
  • Welding: Inside and Out, Minimal Tie-Ins w/ Mig Welding
  • Connections: 3″ Vacuum Inlet Connector
  • Outlet: Two (2) 4″ Butterfly Valves at the Rear
  • Shut Off: Ball Type Primary in Front Manway and Ball Type Secondary (12-Gallon) on Drivers Side Front w/ Drain
  • Venting/Reliefs: 1-1/2″ Vacuum Relief (370 CFM), 2″ Pressure Relief (Adjustable, Set at 10 PSI), both Located at the Top Front of the Barrel, 2″ Blowdown Line at the Rear
  • Axles: Two (2) 30,000 lbs. Each 120″ Wide, 77.5″ Track TP Type w/ Automatic Slack Adjuster
  • Brakes: Air Brakes w/ Two (2) Boosters FMVSS-121, ABS 4S/2M Bendix Anti-Lock Brake System
  • Bumper: 4″ x 3″ Tube Per DOT
  • Frame: High Strength 3/16″ Formed
  • Landing Gear: 2-Speed JOST Heavy-Duty
  • Tires: Eight (8) 11 x 24.5 R All-Terrain Tires
  • Upper Coupler: Adjustable Plate w/ Holland King Pin
  • Wheels: Ten (10) Budd Wheels, Powder Coated White
  • Access Ladder: One (1) Stairway in the Rear w/ Thru-Tread Steps
  • Walkway: Driver’s Side Tank Length Through-Treaded Walkway w/ Toe-Kicks and Handrails
  • Manways: Three (3) on Top of the Tank (Betts or Knappco), One (1) on the Rear Bulkhead, and One (1) on the Top Front Used as a Shutoff. All 20″ Domed Style w/ Plates Swing Bolts and Wing Nuts
  • External Coating: Hempel Two (2) Coats of Polyurethane on an Epoxy Primer
  • Internal Liner: Hempel Epoxy Liner
  • Paint Prep: All Steel Surfaces Shotblasted Inside and Out
  • Conspicuity Tape: 3M Per DOT
  • Hose Tray: Formed Hose Tray (10-Gallon) w/ 1/4″ Supports on Both Sides, and w/ 25′ Length
  • Lights: Sealed Harness w/ Grote LED Lights Per DOT. Two (2) Rear Work Lights w/ Integrated Switches
  • Mudflaps: Four (4) Anti-Sail

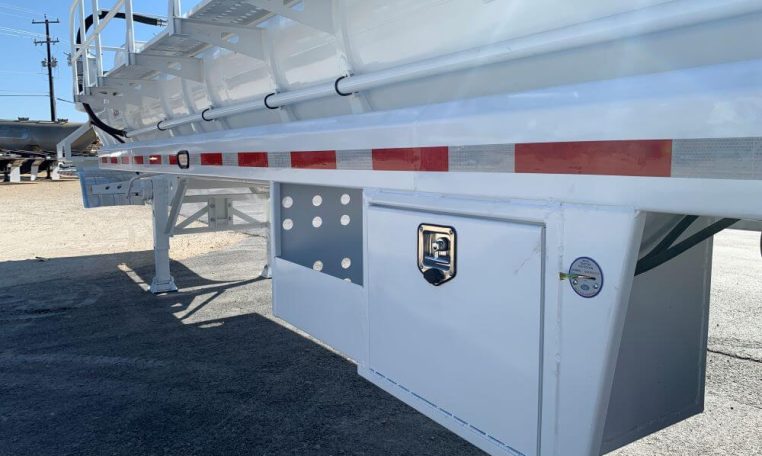

  • Toolbox: One (1) on the Drivers Side (30″ x 16″ x 24″)
  • Vacuum Manometer: One (1) Located in the Rear of the Blow Down Line
  • Optional Fluid Level: Level-Sight Rear or Front Located
  • Paint Color: Available in a Variety of Different Colors
  • Suspension (Optional): Hutch Spring
  • Fluid Level (Optional): Ball Float Type w/ Pointer Level Indicator, Eyr-Style Sight Glasses
  • Under Tank (Options): Additional Toolboxes, Tire Carrier, Chair Carrier
  • *Certain Features Shown Might Change Without Notice

Available Option:

  • Fruitland RCF 500 (338 CFM @ 28.5″ Hg.) Fan-Cooled Vacuum/Pressure Pump (Installed $11,000)

Located in Texas. Manufacturer Warranty. Financing and Leasing are Available. Call 888-432-9070 for More Information. Delivery Available.

  • There are no features available
Stock #: GL2448
Location: Texas
Truck Type: Vacuum Trailers
Quantity: (8) Trailers Available
Condition: New
Year: 2024
Make: NEXA
Model: 130 BBL Vacuum Trailer
Suspension Type: Air Ride
Wheels: Powder Coated Steel
Rear Axles: Tandem
Front Axle Weight: 30,000
Rear Axle Weight: 30,000
Vacuum Type: Available Option
Tank Type: Non-Code
Tank Material: Carbon Steel
Compartments: One
Tank Capacity: 130 BBL / 5460-Gallons
