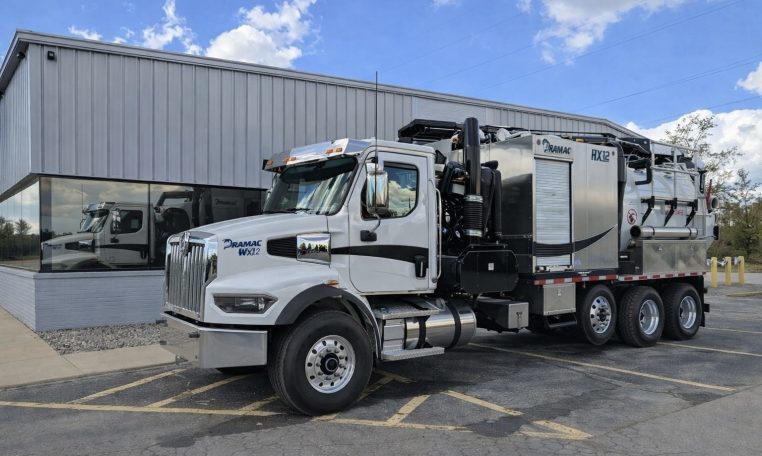

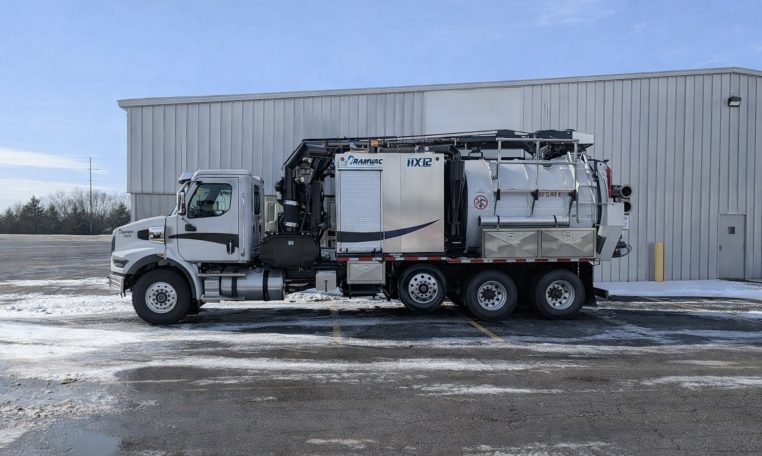

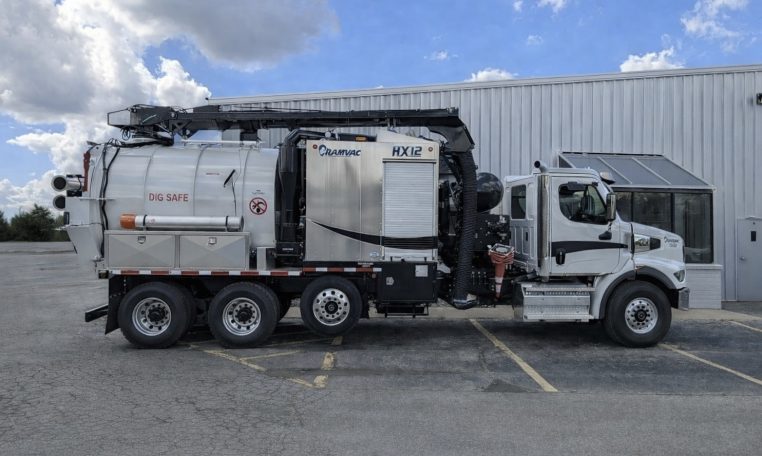

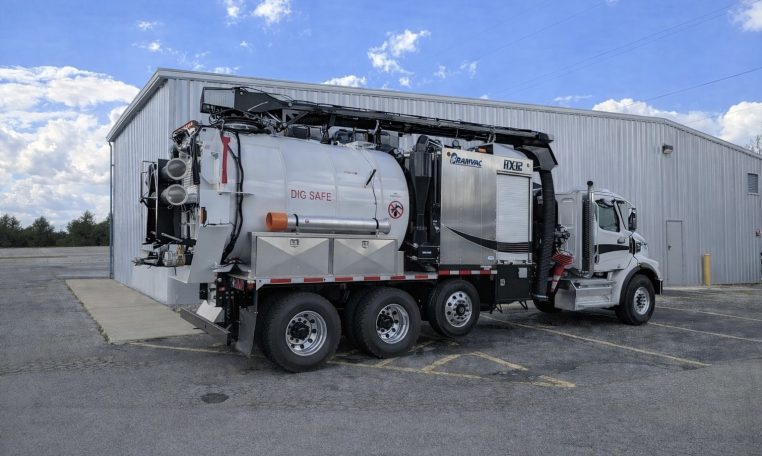

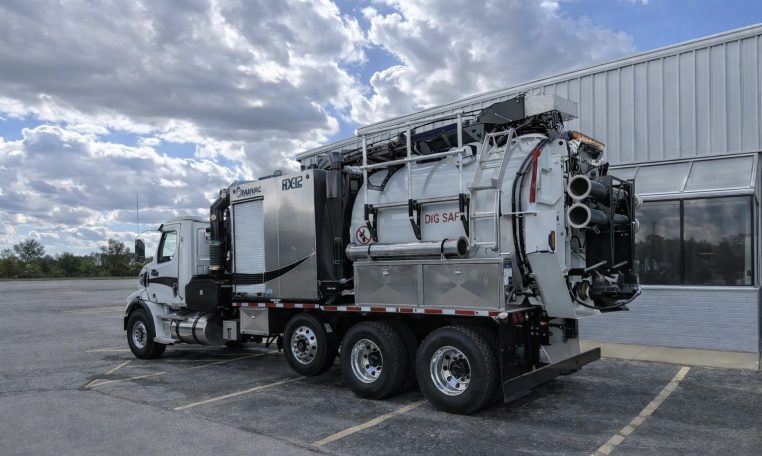

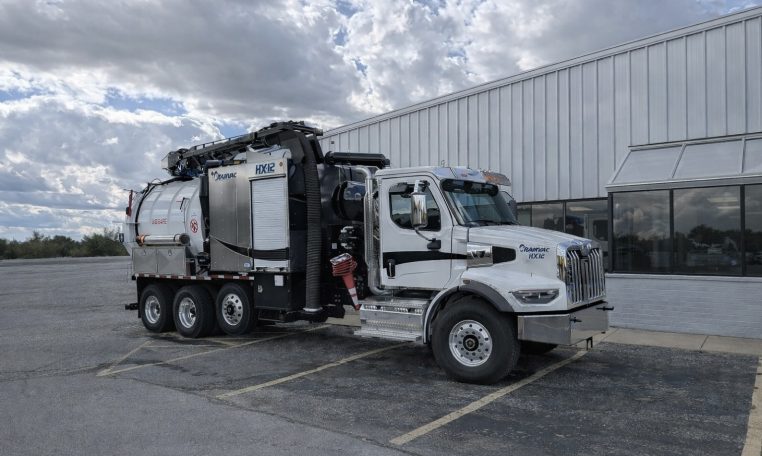

2026 Western Star 47X (12 Yard / 1300 Water) Ramvac HX-12-27 Hydro-Excavation Truck w/ Automatic Transmission and 5250 CFM Blower
Call for Price
Click To Apply
Click To Apply
IN-STOCK
Stock Number GL2647
*IN-STOCK
CALL FOR PRICE
LEASE FOR AS LOW AS $11,100 PER MONTH FOR 72 MONTHS WITH $1.00 A BUYOUT – BASED ON APPROVED CREDIT
*PICTURES ARE NOT OF THE ACTUAL TRUCK
2026 Western Star 47X Chassis, Detroit DD13 (450 HP) Diesel Engine, Allison RDS 4000 6-Speed Automatic Transmission, Engine Brake, Diff Locks, Power Windows, Locks, and Mirrors, Air Ride Suspension, 306″ Wheelbase, 20,000# Fronts, 46,000# Rear Axles, and 13,200# Pusher Axle, 79,200 GVWR.
Ramvac Model HX-12-27 Hydro-Excavator
Vacuum System Options
- 5250 CFM Blower
- 27″ Hg Vacuum Rating
- 8″ Vacuum Hose System
- Dual Cyclone Separator
- Dual Element 10 Micron Final Filter
- Vacuum Relief System
Water System Options
- 18 GPM @ 3000 PSI Water Pump
- 1300-Gallon Duraprolene™ Water Tank w/10-Year Warranty
- 2-1/2″ Hydrant Fill System
- Digital Water Pressure Display
- Recirculation and Blowdown Station
- 800,000 BTU Water Heater
- Winterization System
- 10-Gallon Antifreeze Tank
- Inlet Fill WYE-Strainer
Excavation Options
- Primary Operator Station
- 75′ of 3/8″ hose w/ Retractable Reel
- Dual Operator Station
- 75′ of 3/8″ Hose w/ Retractable Reel and Complete Second Set of Digging Wands and Extensions
Debris Box Options
- Hydraulic Dump w/ 50 Degree Dump Angle
- Hydraulic Open/Close/Lock Door
- Dual Ported Rear Door w/ Knife Valve
- Fold Down Tube Rack
- Debris Tank Access Ladder
- Debris Tank Flush System
- Debris Body Pump Off System Mounted on Rear Door
- Includes 4″ Hydraulic Driven 800 GPM Pump
- Decant Screen on Rear Door Port (Swing-Out Perforated Shield)
- Debris Body Vibrator System
- Audible Debris Liquid Level Alarm
- Level Set Point is Adjustable
Boom Options
- Hydraulic Powered Dig Deep Boom
- 330 Degree Working Radius
- 18′ – 23′ Working Boom Reach
- Extendable Boom System
- Boom Out of Rest Alarm
- Buzzer in the Cab
Enclosure Options
- Aluminum Shroud Enclosure Around Water System
- 80,000 BTU Compartment Heater
- Roll-Up Enclosure Doors
- Polar Pack Insulation System
Tool Storage Options
- Passenger Side Saddle Style Toolbox w/ Integrated Control Panel
- Driver Side Saddle Style Toolbox
- Driver Side Toolbox Mounted on Frame Rail
Electrical Options
- NEMA 4 Control Panel
- Water Pump Hour Meter
- Blower Hour Meter
- Wireless Remote Control
- Remote Water Pressure Control
Lighting Options
- LED Arrow Stick
- Factory 6 Strobe Light Package
- Two (2) Front, Two (2) Side, and Two (2) Rear Facing Strobes
- Two (2) LED Boom Mounted Work Lights
- LED Work Light Package
- Work Light Package Includes Two (2) Rear-Mounted, One (1) Left Side, One (1) Right Side
Safety, Maintenance, and Utility Options
- D.O.T. Approved LED Lighting
- Rear Backup Camera System
- Single Rear Camera w/ Monitor Mounted in Cab
- Air Purge Winterization System
- Six (6) 28″ DOT Approved Cones and Cone Holder
- Central Lubrication System
Paint Options
- Boom Color – Standard Black
- Tank Color – Standard White
- Shroud Color – Aluminum
Manuals and Training
- Operations, Maintenance, and Safety Manuals
Nozzles and Accessories
- Four (4) 8″ x 6′ Extension Tube
- One (1) 8″ x 6′ Aluminum Digging Tube
- Five (5) Quick Clamps
- Variable Degree Wash-Down Gun
- 2-1/2″ 25′ Fill Hose
- Hydrant Wrench
Located in Illinois. MANUFACTURER’S WARRANTY. Financing and Leasing Available. Call 888-432-9070 for More Information. Delivery Available.
- There are no features available
 |
|
 |
|
 |
|
| Stock #: | GL2647 |
| Location: | Illinois |
| Truck Type: | Hydrovac Trucks |
| Condition: | New |
| Year: | 2026 |
| Make: | Western Star |
| Model: | 47X |
| Engine Make: | Detroit |
| Engine Model: | DD13 |
| Horsepower: | 450 |
| Fuel Type: | Diesel |
| Transmission: | Automatic |
| Engine Brake: | Yes |
| Suspension Type: | Spring |
| Wheels: | Aluminum |
| Wheelbase inches: | 306 |
| Rear Axles: | Tri |
| GVWR: | 79,300 |
| Front Axle Weight: | 20,000 |
| Rear Axle Weight: | 46,000 |
| Lift Axle Weight: | 13,200 |
| Lift Axle Type: | Steerable |
| Differential Lock: | Yes |
| A/C: | Yes |
| Power Windows: | Yes |
| Power Locks: | Yes |
| DOT Inspection: | Yes |
| Body Make: | RamVac |
| Body Model: | HX-12-27 Hydrovac |
| Vacuum Type: | Vacuum Blower |
| Pump Make: | Hibon |
| Pump Model: | 8702 |
| CFM Rating: | 5250 |
| Pump Hg. Rating: | 27" |
| Water Pump: | Yes |
| GPM Rating: | 18 |
| PSI Rating: | 3000 |
| Vacuum Boom: | Yes |
| Remote Control: | Wireless Remote |
| Hot Water Boiler: | Yes |
| Boiler BTU Rating: | 800,000 |
| Tank Type: | Non-Code |
| Tank Material: | Carbon Steel |
| Tank Capacity: | 12-Cubic Yards |
| Water Capacity: | 1300-Gallons |
|
|
|
